Borealis Flow™
The Uniqsis BOREALIS FLOW is a high intensity LED lamp unit, available in a range of fixed wavelengths that converts the existing COLD COIL standalone coil reactor module into a flow reactor for photochemical applications.

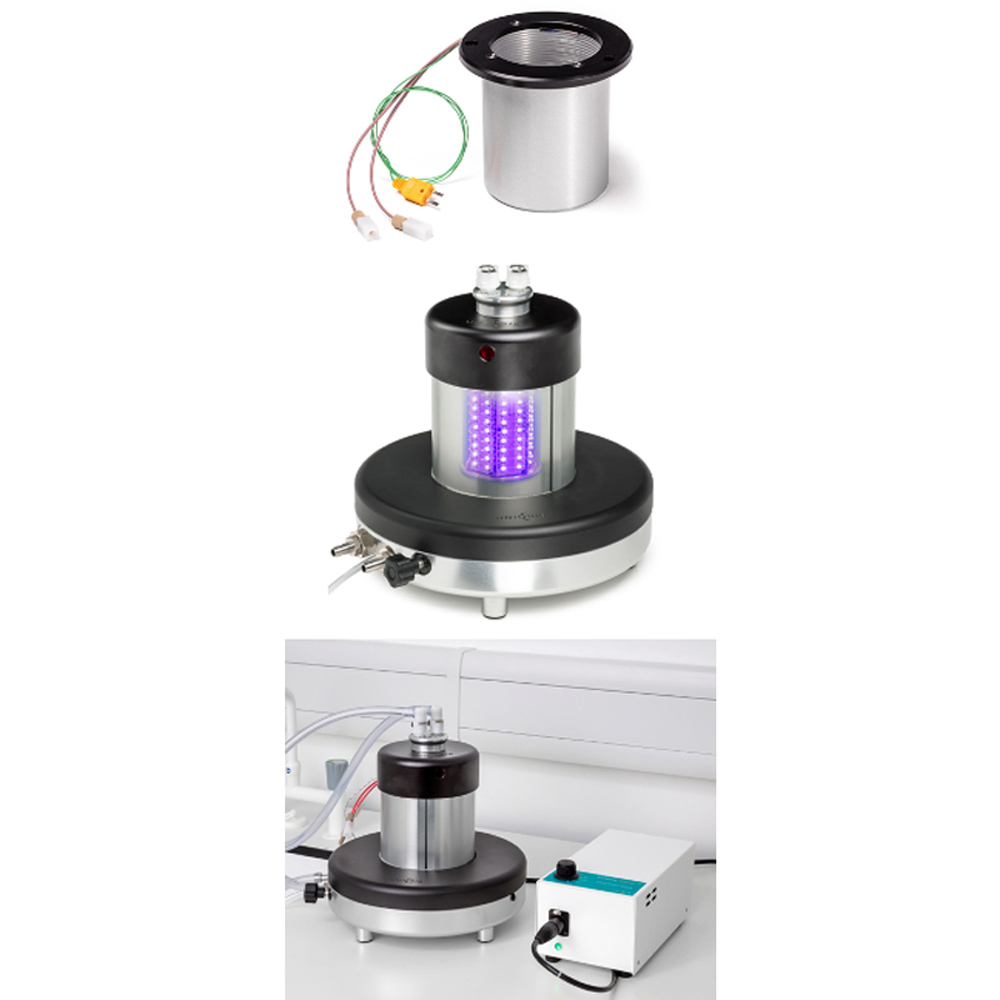

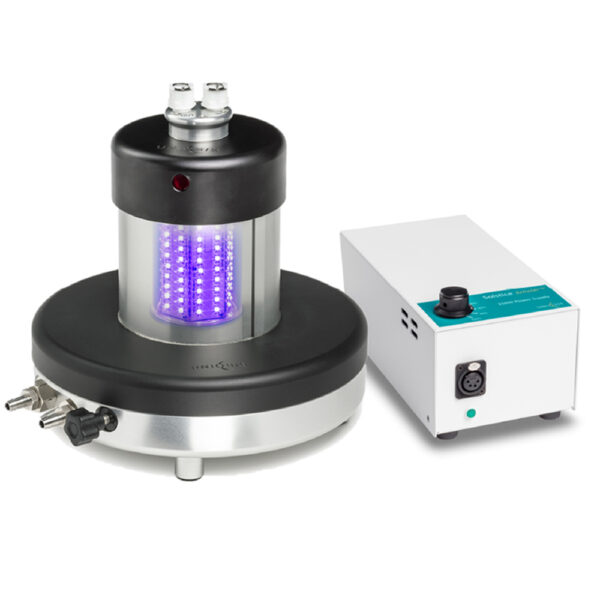

The complete BOREALIS FLOW system is comprised of the BOREALIS LED lamp unit, a 15ml FEP coil reactor (with an internal temperature sensor), the COLD COIL standalone reactor module and a programmable power supply (PSU). Both the LED lamp and the reactor module require independent liquid cooling using either a piped water supply or a closed loop recirculator.
BOREALIS LED lamps of different wavelengths are automatically detected and configured when connected to the power supply.
The complete system is fully light-tight and fitted with a safety interlock.
The BOREALIS LED lamps work with the SOLSTICE™ multi-position batch photoreactor.
- 365 nm, 385 nm, 405 nm, 420 nm, 455 nm & 52 5nm wavelength options available as standard
- Maximum input power 180 W
- 15 mL FEP coil reactor with embedded temp. sensor
- Converts Cold Coil to photo-flow reactor
- Fitted with safety interlocks
- Digital, variable intensity, programmable power supply
- Liquid cooled LEDs
- Compatible with Solstice BATCH photoreactor
