Cold Coil MkII

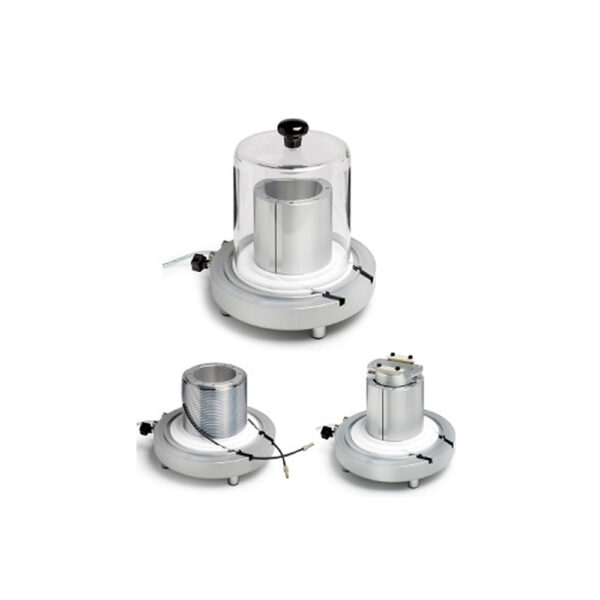

The Uniqsis Cold Coil MkII is a versatile independent reactor module that can be either heated or cooled by connection to an external recirculator.
It is compatible with all Uniqsis coil reactors and can be upgraded to accommodate Uniqsis compact format GLASS STATIC MIXING blocks (GSMs) to facilitate temperature controlled mixing. A temperature probe located inside the module ensures accurate and uniform temperatures are maintained over the course of the reaction.
Fitting the optional Column Adapter Mandrel allows up to 6 column reactors to be accommodated.
When combined with FLOWSYN or BPM and a suitable recirculating chiller, the Cold Coil MkII can cool reactions down to -80 °C (depending on chiller capacity). When combined with a heating recirculator and suitable thermal fluid, it can heat reactions up to +150 °C.
The Cold Coil Mk II has been specifically designed to integrate with the Uniqsis PHOTOSYN and BOREALIS flow-through photoreactors such that light leakage is completely prevented without the need for a dedicated enclosure.
- Accurate temperature control – heating or cooling
- Compatible with FlowSyn, BPM, PhotoSyn & Borealis
- Integral temperature sensor
- Compatible with all Uniqsis coil reactors and compact GSMs
- Column reactor adapter available (6 columns)
