Asynt amber UV protective compact laboratory shield for photochemistry

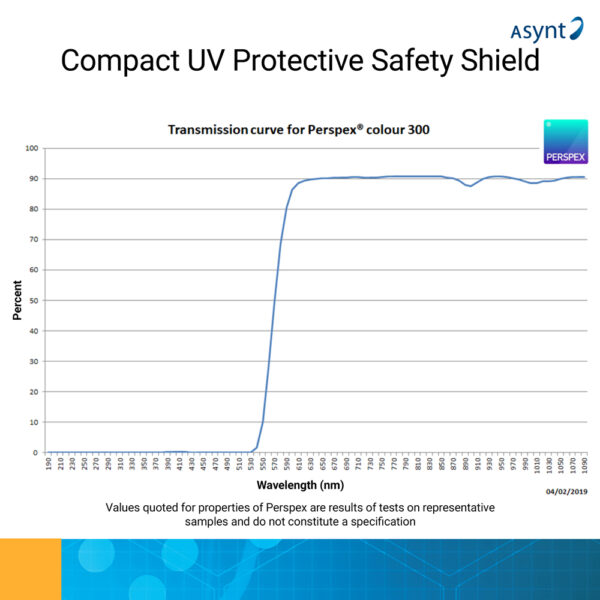

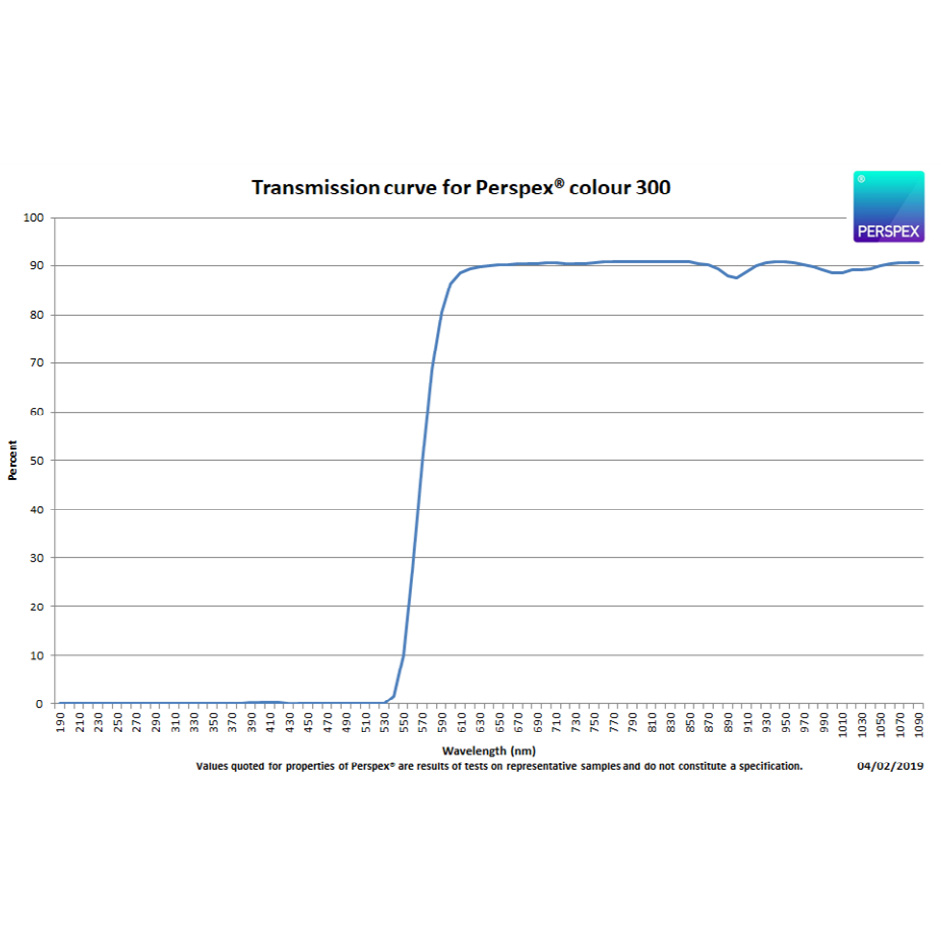

Perspex spectral curve for Amber Safety Shield

Compact UV Protective Safety Shield

The Compact UV Protective Safety Shield is manufactured from Perspex Amber 300 acrylic and fits neatly around any stirrer hotplate. This compact shield is designed to offer some protection when doing photochemistry, and to provide robust, convenient protection from splashes, aerosols and spills.

In addition to giving protection in applications such as heated parallel reactions in tubes, especially those operating under pressure, the Compact UV Protective Safety Shield also shelters reactions from the cooling effect of ventilation, ensuring temperature uniformity.

Manufactured in the UK, this compact safety shield fits Asynt, IKA and Heidolph stirrer hotplates.

Asynt – DrySyn Brochure

Manufactured from 5mm Perspex Amber 300 which blocks >99.9% UV light , the Compact UV Protective Safety Shield is resistant to a range of commonly-used laboratory solvents and is temperature-resistant for a range of -40 °C to 80 °C

Designed with a small footprint to maximise fume hood space, the shield maintains access to hotplate controls and offers additional protection to scientists carrying out photochemical reactions. Fits hotplates up to 16 cm wide.

Dimensions – ALL MEASUREMENTS APPROX

Across open back: 40.0 cm height, 30.5 cm width

Across front: 40.0 cm height, 17.0 cm width, gap height 7.0 cm, gap width 16.1 cm.

Part Number: ADS-LSS-AMB
