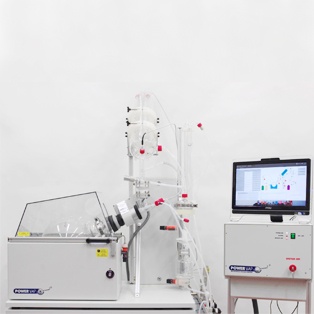

Genser Powervap rotary evaporator
The Genser Powervap is a fully automated technical rotary evaporator with rotating flask 6 / 10 / 20 / 50 / 100 litre
Technical Details of the POWERVAP®
- Automatic filling and emptying of the rotating flask (patented).
- Automatic emptying of the distillate chamber.
- Generation of a desired product concentration.
- Floating rotating flask, which contents is controlled by means of an inclinometer (patented).
- The floating rotating flask reduces mechanical stresses, to achieve by constant tightness, a powerful distillation, even under permanent operation.
Applications:
- Excellent suitable for recovery of solvents.
- Problem-free distillation of high boiling solvents.
- Distillation of large amounts of solvent.
- Concentration of extracts.
- Concentration of fractions coming from HPLC.
Technical data
| POWERVAP®-6 | POWERVAP®-10/20 | POWERVAP®-50 | POWERVAP®-100 | |
| Process control of the fully automated distillation |  |
|
|
|
| Rotating flasks | 6 l | 10, 20 l | 50 l | 100 l |
| Distillation performance of water at a heating bath temperature of 60°C | approx. 2 l/h | approx. 4.5 l/h
(20 l rotating flask) |
approx. 6.5 l/h | approx. 8.5 l/h |
| Average distillation performance per day at fully automated distillation (heating bath temperature of 60°C) | Methanol approx. 115 l Dichloromethane approx. 230 l |
Methanol approx. 260 l Dichloromethane approx. 530 l |
Methanol approx. 360 l Dichloromethane approx. 750 l |
Methanol approx. 460 l Dichloromethane approx. 960 l |
| Dimensions of rotary evaporator (LxWxH) with trolley (option) | approx. 115x75x195 cm |
approx. 135x85x215 cm |
approx. 150x90x225 cm |
approx. 175x100x230 cm |
| Dimensions Process controller (LxWxH) with trolley (option) | approx. 50x75x145 cm |
approx. 50x75x145 cm |
approx. 50x75x145 cm |
approx. 50x75x145 cm |
| Final vacuum | 0.1 hPa | 0.1 hPa | 0.1 hPa | 0.1 hPa |
| Leakage rate | < 5 hPa/h
< 0.1 hPa/h (Option, computer-controlled sealing system STACONSEAL) |
< 5 hPa/h
< 0.1 hPa/h (Option, computer-controlled sealing system STACONSEAL) |
< 5 hPa/h
< 0.1 hPa/h (Option, computer-controlled sealing system STACONSEAL) |
< 5 hPa/h
< 0.1 hPa/h (Option, computer-controlled sealing system STACONSEAL) |
| EEx execution according to ATEX | (option) |
(option) |
(option) |
(option) |
