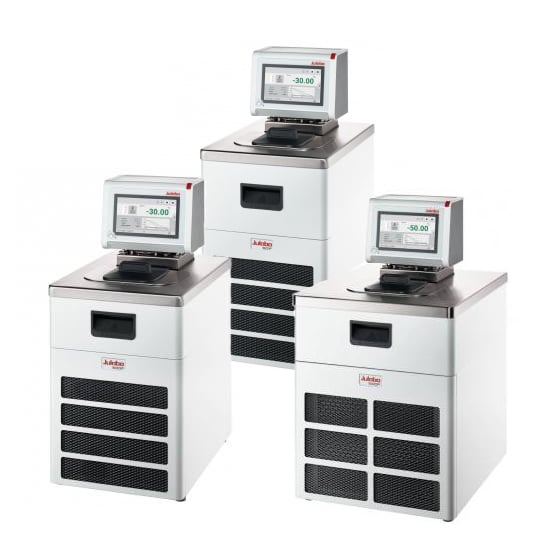

Julabo MAGIO Series Refrigerated/Heating Circulators

As with all circulators from the Julabo MAGIO range, the refrigerated circulators stand out thanks to their premium quality, high performance and intuitive operation.

All MAGIO models have an extremely powerful pressure / suction pump with performance values of 0.92 and -0.4 bar across the majority of the range, thus fulfilling the highest demands for temperature control of external applications. The pump is continuously adjustable, making it perfect for adjustment to pressure or volume-sensitive external applications.

The high resolution touch display guarantees simple, intuitive operation and optimal visibility of all relevant functions and the integrated programmer allows automatic running of temperature time profiles.  MAGIO allows full supervision of the control dynamics, and gives access to all important control parameters for individual process optimisation

Whether in basic research, material testing or technical systems – the MAGIO refrigerated circulators offer high-tech solutions for high customer requirements.

Pump capacity flow pressure 16 … 31 l/min
Pump capacity pressure 0.24 … 0.92 bar
Maximum suction -0.03 … -0.4 bar
Viscosity max. 70 cSt
Power consumption 13 A
Working temperature range -30 … +200 °C
Temperature stability ±0.01 °C
Setting the resolution of the temperature display 0.01 °C
Temperature display resolution 0.01 °C
Ambient temperature +5 … +40 °C

Performance data depends on the mains voltage in the country of use

Heating capacity 2 kW
Cooling capacity

Refrigerant variant N1 (Environmentally-friendly natural refrigerant)
Order number including voltage version 9032714.N1.04
Cooling capacity 1 Medium: Ethanol
°C 20 0 -10 -20 -30
kW 1 0.46 0.39 0.29 0.17 0.07
Cooling capacity 2 Medium: Ethanol
°C 20 0 -10 -20 -30
kW 1 0.4 0.33 0.24 0.12 0.01
Refrigerant R290
Global Warming Potential 3
Filling weight 33 g
Carbon dioxide equivalent 9.9E-5 t
Refrigerant variant S1
Order number including voltage version 9032714.S1.04
Cooling capacity 1 Medium: Ethanol
°C 20 0 -10 -20 -30
kW 1 0.46 0.39 0.29 0.17 0.07
Cooling capacity 2 Medium: Ethanol
°C 20 0 -10 -20 -30
kW 1 0.4 0.33 0.24 0.12 0.01
Refrigerant R449A
Global Warming Potential 1397
Filling weight 70 g
Carbon dioxide equivalent 0.09779 t

1 Performance specifications measured in accordance with DIN 12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level
